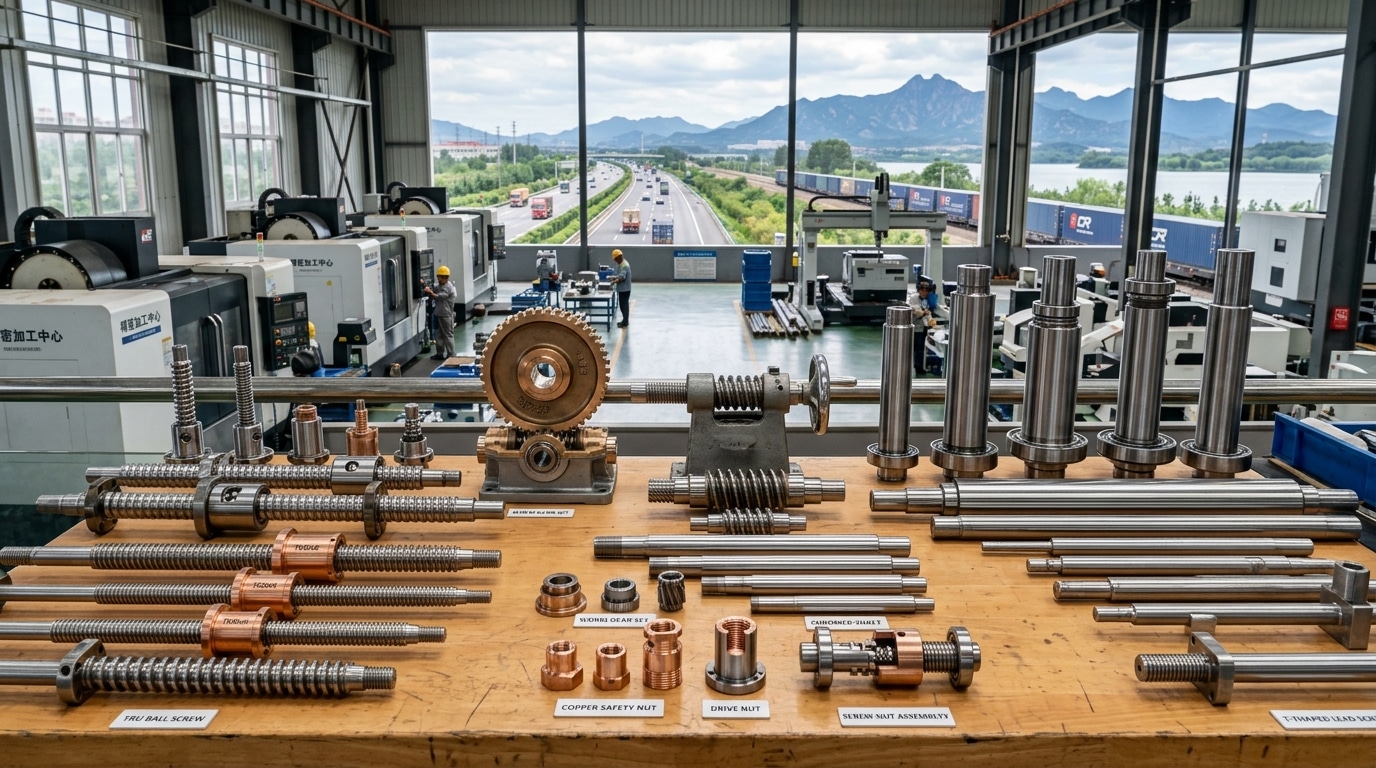

High Quality Screw Nut Pair for Precision Machinery

Introduction to Screw Nut Pairs

Screw nut pairs are a fundamental component in the field of precision machinery. They play a vital role in converting rotary motion into linear motion and are widely used in applications requiring high accuracy, smooth operation, and long-lasting performance. At Shandong Kaiwo Machinery Co., Ltd, we specialize in producing high-quality Screw Nut Pair designed to meet the stringent demands of modern mechanical systems.

The importance of a well-manufactured screw nut pair cannot be overstated. They are central to machines in industries such as robotics, CNC machinery, medical equipment, and aerospace engineering. The quality, precision, and durability of these components determine the efficiency, reliability, and lifespan of the machinery they are installed in.

What is a Screw Nut Pair?

A screw nut pair consists of two components: a screw (also known as a lead screw or ball screw) and a nut that moves along the screw’s threads. The screw rotates while the nut translates along the axis of rotation, converting rotary motion into linear motion. This mechanism is essential in achieving precise positioning and repeatable movements in various types of machinery.

Components of a Screw Nut Pair

1. Screw (Lead Screw or Ball Screw):
   The screw is the rotating component with threads designed to interact with the nut. High-quality screws are manufactured to tight tolerances to ensure smooth operation and minimal backlash.
2. Nut:
   The nut engages with the screw’s threads, and its linear motion is determined by the screw’s pitch. Nuts can be solid or incorporate recirculating balls in the case of ball screw pairs, which reduces friction and increases efficiency.
3. Thread Design:
   The thread design, including its profile and pitch, directly affects the performance of the screw nut pair. Properly engineered threads minimize wear, ensure high load capacity, and enable smooth operation.

Types of Screw Nut Pairs

Screw nut pairs can be classified based on their thread type, motion mechanism, and intended application. Understanding the different types is crucial for selecting the right component for your machinery.

Ball Screw Nut Pairs

Ball screw nut pairs use recirculating balls to reduce friction between the screw and nut. This design improves efficiency, reduces wear, and allows for high-speed operation while maintaining precision. Ball screw nut pairs are widely used in CNC machines, robotics, and other applications requiring smooth and accurate linear motion.

Lead Screw Nut Pairs

Lead screw nut pairs rely on direct contact between the screw and nut threads. While less efficient than ball screw designs due to higher friction, lead screws are simpler, more cost-effective, and suitable for applications where extreme precision is not critical. They are commonly found in manual machinery adjustments, linear actuators, and automation equipment.

Anti-Backlash Nut Pairs

Backlash, or the slight movement that occurs when the direction of motion reverses, can compromise precision. Anti-backlash screw nut pairs are designed to eliminate this issue through preloaded nuts or split-nut mechanisms. These pairs are essential in high-precision applications such as semiconductor equipment, medical devices, and advanced CNC systems.

Advantages of High-Quality Screw Nut Pairs

Choosing a high-quality screw nut pair from a reputable manufacturer like Shandong Kaiwo Machinery Co., Ltd offers several advantages, ensuring optimal machine performance and longevity.

Precision and Accuracy

A premium screw nut pair ensures minimal deviation in linear motion. The accuracy of the screw threads and the fit of the nut contribute to consistent positioning, making them ideal for precision machinery applications.

Reduced Friction and Wear

Ball screw designs in particular minimize friction through the use of recirculating balls, reducing heat generation and wear. This extends the service life of the components and ensures smooth operation under continuous use.

High Load Capacity

High-quality screw nut pairs can support significant axial loads without deformation. This makes them suitable for heavy-duty machinery and industrial applications where reliability under stress is essential.

Low Maintenance

Superior materials and precise manufacturing reduce the need for frequent maintenance. Lubrication intervals are extended, and components maintain their performance over time, saving operational costs.

Versatility

Screw nut pairs are versatile components, compatible with a wide range of machinery, including CNC routers, 3D printers, automated assembly lines, and medical devices. Their adaptability makes them a staple in precision engineering.

Applications of Screw Nut Pairs

The use of screw nut pairs spans multiple industries due to their ability to provide precise, repeatable, and reliable linear motion.

CNC Machinery

In CNC machinery, screw nut pairs are critical for accurate positioning of cutting tools and workpieces. Ball screw pairs, in particular, provide smooth, high-speed operation, ensuring precision machining and efficient production cycles.

Robotics

Robotics applications demand precise, repeatable linear motion. Screw nut pairs enable robotic arms, actuators, and motion platforms to achieve the required accuracy for tasks such as assembly, welding, and material handling.

Medical Equipment

Medical devices such as imaging systems, surgical robots, and laboratory automation equipment rely on high-precision screw nut pairs. Their reliability and smooth operation are crucial in maintaining patient safety and achieving consistent results.

Aerospace and Aviation

In aerospace applications, screw nut pairs are used in actuators, control surfaces, and various precision mechanisms. High load capacity, minimal backlash, and resistance to environmental stress make these components indispensable in this industry.

3D Printing and Additive Manufacturing

Screw nut pairs are integral to 3D printers, ensuring precise movement of print heads and build platforms. Accuracy in layer placement directly affects print quality, making the choice of high-quality screw nut pairs essential.

Selecting the Right Screw Nut Pair

Choosing the correct screw nut pair for your machinery involves evaluating multiple factors. Proper selection ensures optimal performance and reduces the risk of premature wear or failure.

Load Requirements

Determine the axial load the screw nut pair will bear. High-load applications require screws with larger diameters, stronger materials, or ball screw designs to prevent deformation and maintain precision.

Accuracy and Precision

Consider the required accuracy for your application. Ball screw pairs with preloaded nuts offer minimal backlash, ideal for high-precision operations. For less critical applications, standard lead screw nut pairs may suffice.

Speed and Efficiency

High-speed machinery benefits from ball screw nut pairs due to their reduced friction and smooth operation. Lead screws are better suited for slower, low-duty-cycle applications.

Environmental Conditions

Assess the operating environment, including temperature, humidity, and exposure to dust or chemicals. Stainless steel or coated screw nut pairs may be necessary for corrosive or harsh environments.

Maintenance Considerations

Evaluate the maintenance requirements for the screw nut pair. High-quality components often require less frequent lubrication and inspection, reducing downtime and operational costs.

Manufacturing and Material Considerations

The performance of a screw nut pair is heavily influenced by the quality of materials and precision manufacturing techniques used.

Material Selection

Common materials include carbon steel, stainless steel, and alloy steels. High-strength materials ensure durability and wear resistance. Stainless steel is ideal for corrosive environments, while hardened steel provides high load-bearing capacity.

Thread Accuracy

Precision machining ensures that the screw and nut threads align perfectly, minimizing backlash and ensuring smooth motion. Thread grinding, rolling, and polishing techniques are used to achieve tight tolerances.

Surface Treatment

Surface treatments such as nitriding, chrome plating, or black oxide coating improve wear resistance, reduce friction, and protect against corrosion. These treatments enhance the longevity and performance of the screw nut pair.

Quality Control

Reputable manufacturers, like Shandong Kaiwo Machinery Co., Ltd, implement strict quality control measures. Each screw nut pair undergoes inspection for dimensional accuracy, thread quality, and load capacity to meet international standards.

Maintenance Tips for Screw Nut Pairs

Proper maintenance extends the life and performance of screw nut pairs, preventing costly downtime and ensuring consistent operation.

Regular Lubrication

Lubrication reduces friction and wear. Use the manufacturer-recommended lubricants and apply them at regular intervals. Ball screw pairs may require specialized grease or oil for optimal performance.

Cleaning and Inspection

Keep the screw and nut free from dust, debris, and contaminants. Regular inspections for wear, corrosion, and thread damage help identify potential issues early.

Proper Alignment

Misalignment can cause uneven wear and reduce the lifespan of screw nut pairs. Ensure that the screw and nut are properly aligned with the machine’s axis.

Preload Adjustment

For anti-backlash screw nut pairs, periodically check and adjust the preload to maintain minimal backlash and high positioning accuracy.

Why Choose Shandong Kaiwo Machinery Co., Ltd

At Shandong Kaiwo Machinery Co., Ltd, we combine precision engineering, advanced manufacturing techniques, and stringent quality control to produce screw nut pairs that exceed industry standards.

• Expertise: Years of experience in precision machinery components ensure that every screw nut pair meets exacting standards.
• Customization: We provide tailored solutions to match specific machinery requirements, including load, pitch, and material options.
• Reliability: Our screw nut pairs undergo rigorous testing to guarantee consistent performance, minimal backlash, and long-term durability.
• Global Reach: Serving industries worldwide, our products are trusted by manufacturers in robotics, aerospace, CNC machinery, and more.

Conclusion

Screw nut pairs are indispensable in modern precision machinery, offering high accuracy, smooth operation, and reliable performance. Choosing the right screw nut pair, considering factors like load capacity, precision, speed, and environmental conditions, ensures optimal machinery operation. High-quality components, such as those offered by Shandong Kaiwo Machinery Co., Ltd, provide longevity, reduced maintenance, and versatility across diverse applications—from CNC machinery and robotics to medical devices and aerospace equipment. Investing in premium screw nut pairs guarantees that your machinery operates efficiently, accurately, and reliably for years to come.
